- Set the serial port format on the Falcon to Rhino.

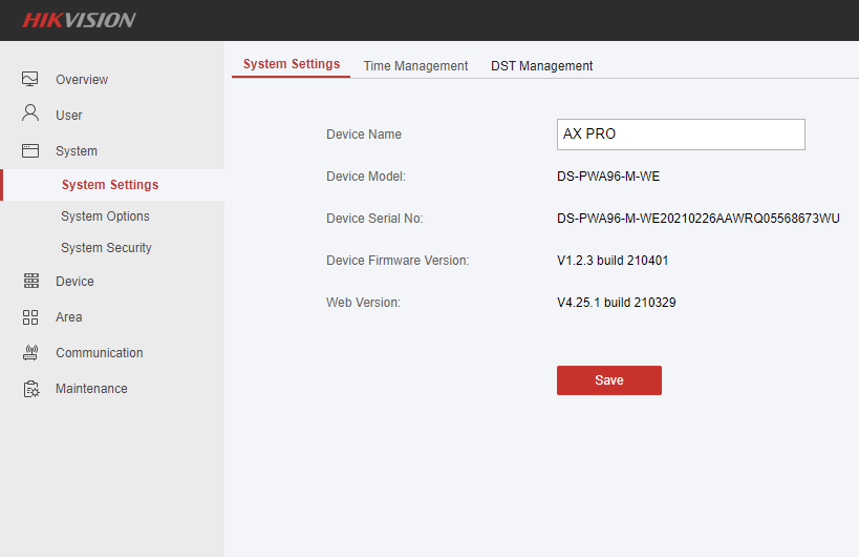

- Please take note that the firmware version of the Hikvision alarm system should be V1.2.3 build 210401 or later.

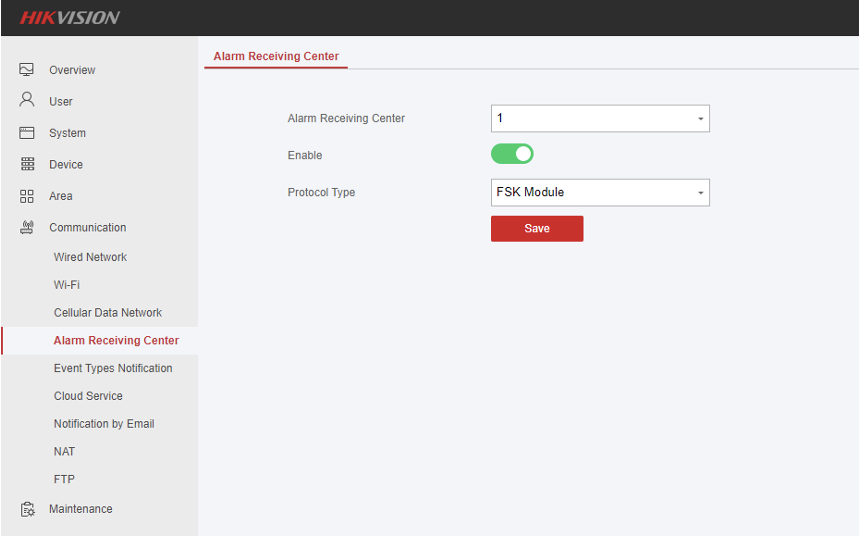

- In the Hikvision Communication settings, set the Alarm Receiving Center to FSK Module.

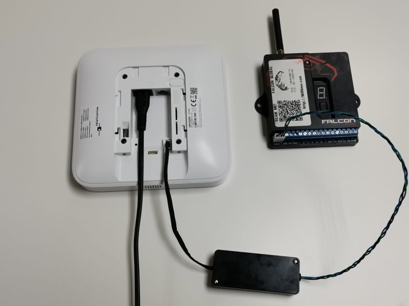

- Connect the Hikvision AXPRO to the GSM Falcon (or Guardian Plus unit) as shown below:
